Model Number :

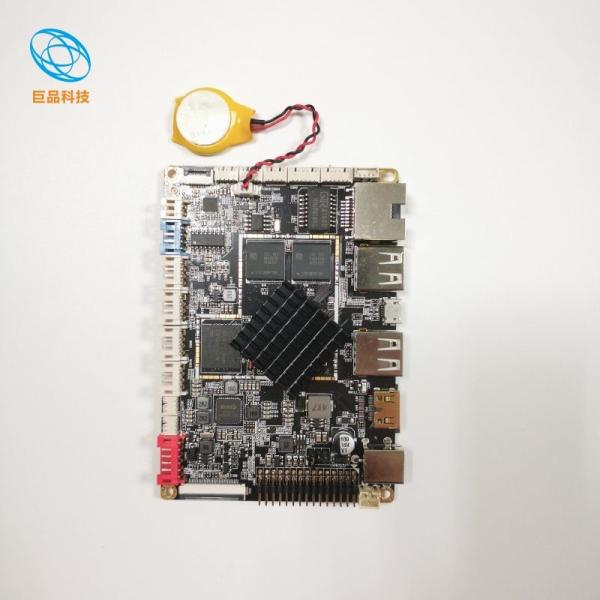

D-3588 Motherboard
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Packaging Details :
135mm*95mm* 14mm
Brand Name :
Shi Zun
Keyword :
Android Motherboard
CPU :
RK3588, quad-core Cortex-A76+ quad-core Cortex-A55, Clock up to 2.4GHz
GPU :
Mali-G610 MC4
NPU :
Supports 6 Tops computing power, three-core architecture, supports int4/ int8/ int16/ FP16/ BF16/ TF32
RAM :
Standard 2GB LPDDR4, 4GB/ 8GB/ 16GB/ 32GB optional
ROM :
Standard 16GB EMMC, up to 128GB
LVDS :
30Pin dual-channel LVDS interface, supporting up to 1080P resolution
HDMI :
HDMI 2.1 interface, supporting up to 8K resolution
MIPI :
31Pin FPC MIPI-DSI interface, supporting up to 1080P resolution
eDP :
Standard eDP interface, supporting up to 4K resolution
Headphone/ MIC :
Support CTIA 4-pole HP/ MIC socket (Left-Right-GND-Mic)
Line Output :
Support standard left and right channel line output (pin header)
MIC Input :
Single-End MIC input (pin header)
Amplifier Output :
8 Ohm 6W Dual Audio Amplifier Output
USB Host :
2 external USB 3.0, 7 built-in USB 2.0
USB OTG :
1USB 3.0 OTG interface
TF Card :
Self-elastic TF card socket, supports 128GB TF card
Serial ports :
4-way TTL/ RS232 serial ports, 1-way TTL/ RS485 serial port
SATA hard drive :
1 standard SATA 3.0 hard disk interface (with power header)
RTC :
Low power consumption RTC circuit with CR1220 battery
12C :
2-way I2C interface
Backlight :
2-way backlight control interface, supports switch and brightness adjustment
GPIO :
8-way GPIO signals
Infrared :
Infrared receiving pin header
Button :
Burn button and power button
Pilot lamp :
Red standby indicator and green working indicator light
Camera :
Support up to 16million 4-Lane MIPI CSI camera
CAN bus :
2-way CAN pin header interface, expandable CAN bus peripherals
POE :
1-way POE power receiving interface
HDMI Input :
HDMI 2.0/1.4b standard input interface, 2.0 up to 2160p@60Hz, 1.4b up to 1080p@120hz
Ethernet :
2-way 10/100/1000Mbps adaptive Ethernet
WiFi :
High-performance WiFi 6, support802.11 b/g/n/ac
Bluetooth :
High-performance Bluetooth, supports BT v5.0
4G/3G :
Built-in Mini-PCle interface, external 4G/3G module, onboard self-ejecting Micro-SIM card holder
DC input :
12V DC socket, supports 9V-15V wide voltage input
Size :
135mm*95mm
Thickness :
14mm
Structure compatible :
Compatible with D-3568structure and interchangeable
Operating temperature :
-20℃~70℃
Humidity :
0%~95%(No condensation)
Android system :
Recommend Android 12.0
Linux system :
Linux Buildroot/ Debian11/ Ubuntu-20.04 optional
