Brand Name :
Shi Zun
Model Number :
C4 Board
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pcs+day
Packaging Details :
100mm* 77mm* 17mm

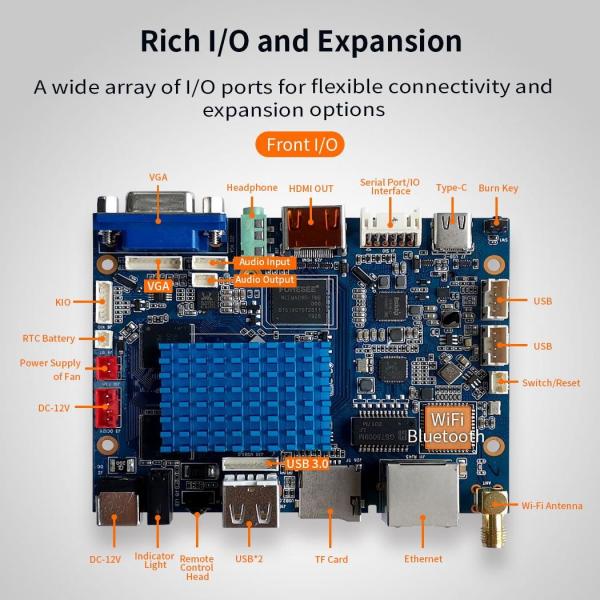

CPU :
Rockchip RK3399,dual-core Cortex-A72@1.8GHz,quad-core Cortex-A53@1.4GHz
GPU :
Quad-core Mali-T860
System Memory :
2GB(optional 4GB) LPDDR3
Storage :
8GB eMMC (128GB Max)
HDMI :
HDMI 2.0 interface, up to 4Kresolution
VGA :
VGA interface, up to 1080P resolution
Headphone :
3.5mm jack (supports HPD)
Line Out :
Left/ Right channel output
Mic :
Single-ended MIC input
USB Host :
USB 2.0 ports (2 Ext. + 4 Int.), and 1 USB 3.0interface
USB OTG :
1X external OTG Type-Cinterface
TF Card :
Push-push type TF card slot (128GB Max)
Serial Port :
6X TTL/RS-232 compatible serial ports
RTC :
Low power RTC with a CR1220 battery
GPIO :
9x GPIO ports
IR :
Infrared receiving pin header interface
Button :
Burn key and power/ reset pin header
Indicator Light :
3 indicator lights for standby/ network/ operation
Ethernet :
10/100Mbps adaptive Ethernet port
Wi-Fi :
802.11 b/g/n/ac
Bluetooth :
BT V4.0 (optional)
4G/3G :
Built-in MiniPCI-E interface, externally expanded 4G/3G module, onboard pop-up Nano-SIM card slot
DC Input :
12V DC socket (9V-15V wide voltage)
Dimensions :
100mm* 77mm
Thickness :
17mm
Structure Compatibility :
Compatible and interchangeable between models C0/ C3/ C4
Operating Temperature :
0℃- 70℃
Humidity :
0%-95% (non-condensing)
Android :
Android: 7.1 (recommended), 8.1 (optional)
Linux System :
Ubuntu 18.04, Debian 9 and Buildroot+QT 2018.02 are optional
